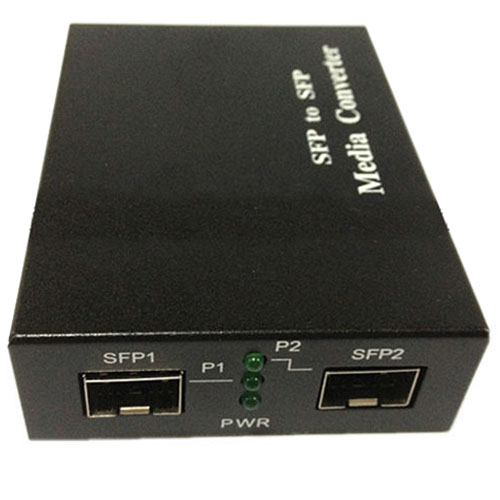

10/100M SFP TO SFP Fiber Media Converter

Overview

This SFP to SFP Fiber media converter is an Ethernet media converter that converts media transmission between UTP Copper cablings and fiber SFP (Small Form-Factor Pluggable) Transceivers. The  copper-to-fiber module is available in 10/100Mbps Fast Ethernet types, allowing seamless integration between Fast Ethernet networks using unshielded twisted pair (UTP) copper cabling, and 100M fiber networks.

Feature

1. Conversion between different transmission speeds and media types
2. Standalone and compact hardware design
3. Auto-negotiating Ethernet port (Speed and Half/Full Duplex)
4. Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)
5. Standard open Fiber slots for SFP Transceiver
6. Built-in Link Loss Forwarding Technology
7. Easy Installation, Easy Troubleshooting

Detailed Specification

Standard Compliance

1. IEEE802.3 10BASE-T
2. IEEE802.3u 100BASE-TX
3. IEEE802.3x Flow Control and Back pressure

Connector and Interface

1. Fiber: SFP 3.3V
2. RJ-45 Socket: CAT-5 (10/100Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support

Switch Architecture

1. Store and Forward

Link Loose Forward

1. TX to Fiber: If TX port link down, then converter will forced fiber to link down.
2. Fiber to TX: If Fiber port link down, the media converter will forced TX port to link down.

DIP Switch

1. DIP Switch 1: UTP auto-Negotiation / 100Mbps Full Duplex mode
2. DIP Switch 2: Fiber Full/Half duplex
3. DIP Switch 3: LLF ( Link Lose Forwarding ) Disable / Enable
4. DIP Switch 4: Switch converter / Pure converter mode

LED Indication

1. FEF,SPD,FX-LINK,TX-LINK,PWR,FDX

Power

1. Stand-alone (external adapter):DC 5V / 1A

Dimension

1. 95 (L) x 70(W) x 25(H) mm, power external

Operation Environment

1. Operating temperature: 0°C ~ 70°C
2. Storage temperature: - 40°C ~ 85°C
3. Operating humidity: 10% ~ 90%, non-condensing
