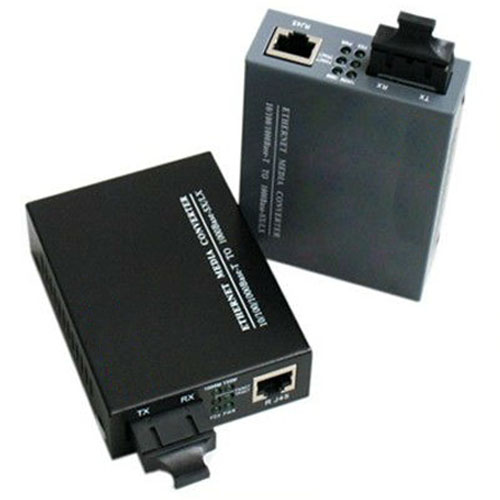

Specifications
- 10/100BASE-TX to 100BASE-FX connector
- Transmission distance up to 2KM/100KM
- Anti-electromagnetic interference
- To PC network
Description
This product comply with IEE802.3z/ab Gigabit Ethernet standard. It supports
two types of media for network connection such as 1000Base-T to 1000base-SX/LX
and connects these two types of segments to operate smoothly. It supports a
variety of fiber optic, including multimode and single mode. WDM Technology
Combines Dual Fiber Cables into Single Fiber. Greatly save the Installation
cost of Expensive Fiber Cable.
Features
Complies with 1000Mbps switches and 1000Mbps NICs Cost-effective for budget user Extends network span from 550m (multimode fiber SX) up to 10km (Single mode fiber 10km)WDM Technology Combines Dual Fiber Cables into Single Fiber.
MDI/MDI-X Auto NegotiationLED Indicators: FX LINK, FX FDX, TP LINK, TP FDX, ACT, POWERFCC Class A & CE approved
Parameters
| Standard |
IEEE802.310B-T, IEEE802.3u, 100b-Tx& 100b-Fx, IEEE802.3x, IEEE802.1p |
| Data Rate(Mbps) |
10/100M |
| Operating Wavelength |
BIDI TX1310nm/RX1550nm; TX1550nm/RX1310nm |
| Connectors |
SC(ST/FC customized) |
| Fiber type |
Single mode(SM) |
| Fiber ports |
1 |
| UTP ports |
1 |
| MTBF |
> 3 years |
| POE |
NO |
| Features |
High stability and excellent reliability |
| Auto negotiation for 10/100m TP port speed |
| Full duplex 10/100Mbps Ethernet up to 120KM(dual fiber), 80KM(single fiber) |
| Half/full duplex automatic identification |
| Plug and play installation |
| 6/9 LEDS for monitoring the status of power |
| Max up to 120KM |
| Operating Temperature |
0~70 ° C |
| Size |
26.5mm(H)x 70.5mm(W) x 94mm(D) |
| Power supply |
External: DC 5V1A |
| Internal: AC 90-250V, 50Hz, 12VDC, -48VDC |
|
